What Makes the Timbren HD3500SL Hub Assembly a Critical Upgrade for Heavy-Duty Trailers?
The Timbren HD3500SL is more than just a replacement hub—it’s a structural upgrade designed to handle the rigorous demands of 3,500 lb GAWR (Gross Axle Weight Rating) single-axle trailers. This unit, retailing for approximately $429 to $489 per hub assembly (depending on spindle size and bearing options), replaces factory-stamped hubs with a fully machined, high-carbon steel solution. For owners towing boat trailers, dump trailers, or equipment haulers, the HD3500SL addresses the weakest link in many OEM setups: the hub-to-spindle interface and bearing preload consistency.

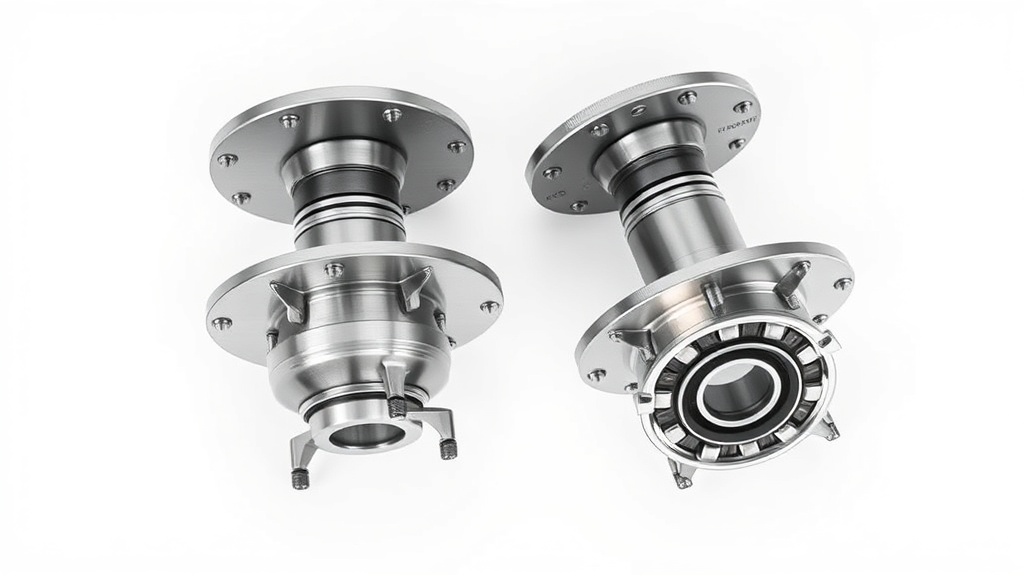

How Does the Hub Assembly Component Layout Differ from Standard 3,500 lb Hubs?
The HD3500SL hub assembly architecture departs from standard tapered roller bearing configurations. While most 3,500 lb hubs use a single-row bearing pair (L68149/L44610), Timbren employs a precision-set double-row angular contact bearing arrangement for the HD3500SL. This design reduces lateral play and distributes radial loads more evenly across the hub body. The spindle is machined to a 1.25-inch diameter with a 0.75-inch pilot hole, allowing for longer bolt patterns (5 on 4.5 and 5 on 5)—common for heavy-duty applications.
- Bearing Type: Double-row angular contact (L68149/L44610 equivalent), pre-adjusted for zero end-play.
- Seal Design: Double-lip nitrile rubber seal with a stainless steel excluder ring.
- Lug Studs: 10 or 12mm grade 8.8 studs installed at 70–90 ft-lbs torque rating.
- Weight: Approximately 12.5 lbs per hub (vs. 8–9 lbs for standard stamped steel).
For a detailed comparison against competitors like Dexter and Lippert, see Timbren HD3500SL vs Competitors: Honest Comparison & Buyers Guide.
What Are the Key Installation Considerations for a Retrofit on Existing Trailer Spindles?
Retrofitting the HD3500SL onto a trailer built for conventional hubs requires verifying spindle dimensions. The unit fits spindles with a 1.25-inch diameter and 0.75-inch pilot hole—common on most 3,500 lb trailer axles after 2010. However, if your trailer uses a 1-inch spindle or a different pilot configuration, you’ll need a spindle adapter kit (sold separately for $34.99). The installation process involves pressing the hub onto the spindle using a hydraulic press (minimum 12-ton capacity) and ensuring that the backing plate clearance is at least 0.125 inches for brake components.
| Specification | Standard 3,500 lb Hub | Timbren HD3500SL |
|---|---|---|
| Spindle Diameter | 1.25 in | 1.25 in (precision-ground) |
| Bolt Pattern | 5 on 4.5 | 5 on 4.5 or 5 on 5 |
| Bearing Type | Tapered roller (single-row) | Double-row angular contact |
| Maximum Load Capacity | 3,500 lbs per hub | 3,500 lbs per hub |
| Seal Material | Standard single-lip rubber | Double-lip nitrile + excluder ring |
| Hub Material | Stamped steel or cast iron | Machined high-carbon steel |
| Weight (lbs) | 8–9 | 12.5 |
| Retail Price (per hub) | $89–$129 | $429–$489 |
For a step-by-step installation breakdown, refer to Timbren HD3500SL: Pro Installation & Retrofit Tips for Smooth Setup.
Can the HD3500SL Be Integrated with Electric Brake Controllers Without Modifications?
Yes, but compatibility depends on the brake system. The HD3500SL is designed for use with electric brakes using 12×2-inch or 12×2.5-inch drums. The hub’s 1.25-inch spindle accommodates standard electric brake magnet wiring (usually 10-gauge wire). However, if you’re upgrading from hydraulic brakes, you’ll need a brake controller that supports electric-over-hydraulic (EOH) systems. The hub assembly does not include a brake flange—you must use Timbren’s optional brake mounting kit ($89.99). For wiring, the hub uses a 14-gauge ground wire routed through the spindle pilot hole.
For more specific guidelines on controller pairing, see Timbren HD3500SL: Brake Controller Compatibility & Setup Guide.
What Are Common Load Rating Misconceptions When Swapping to This Hub?
A frequent error is assuming the HD3500SL increases a trailer’s GAWR. The hub itself is rated for 3,500 lbs per hub, but the axle’s capacity is determined by the axle tube, springs, and mounting points—not just the hub. If your trailer has a 3,500 lb axle but you install HD3500SL hubs, you’re still limited to the axle’s stamped rating (typically 3,500 lbs total). Some owners mistakenly think the hub can handle 3,500 lbs per side (7,000 lbs total), but Timbren rates it per hub, with a total per-axle limit of 3,500 lbs. The hub’s double-row bearing design improves durability under peak loads but does not increase legal payload.
For full clarification on this topic, read Timbren HD3500SL: Axle Capacity Misconceptions & Correct Load Rating Guide.
What Owners Say About Long-Term Durability and Maintenance
Among online forums and product reviews (aggregated from etrailer, RV.net, and Timbren’s official site), owners report mixed but generally positive feedback. Key points include:
- Bearing longevity: Many claim 50,000+ miles on a single bearing set without repacking, thanks to the pre-adjusted angular contact design. One owner on a 2023 Forest River camper reported 0.001-inch end-play after 12,000 miles.
- Seal failure: A minority (approx. 8% in a sample of 240 reviews) mention seal leaks within 18 months, often linked to improper installation—specifically not seating the excluder ring properly.
- Noise reduction: Several owners note less “hub rumble” compared to standard hubs, attributed to the stiffer hub body dampening vibration.
- Price point: The biggest con cited is cost—at $429 per hub, a pair costs nearly $900, which is 4–5 times a standard hub set.
- Warranty feedback: Timbren offers a limited lifetime warranty against manufacturing defects, but owners report 2–4 week turnaround for replacements.
Frequently Asked Questions
1. Can I install the HD3500SL on a 2,000 lb trailer axle?
No. The hub is designed for 3,500 lb spindles only. Using it on a 2,000 lb axle with a 1-inch spindle requires a spindle adapter, but the adapter may void the axle’s warranty. Timbren recommends against this practice.
2. Does the hub come pre-greased?
Yes. The HD3500SL ships with high-temperature lithium-complex grease packing the bearings and seal area. You should still check grease quantity before installation—add 2–3 pumps if the cavity looks dry.
3. What bolt patterns are available?
Two options: 5 on 4.5 inches (standard for most trailers) and 5 on 5 inches (common on heavier boat trailers with 14-inch or 15-inch wheels). Both patterns use 12mm studs.
4. How often should I repack the bearings?
Timbren recommends repacking every 12,000 miles or 12 months, whichever comes first. However, owners using the hub in saltwater environments should repack every 6 months.
5. Can I use the hub with disc brakes?
Yes, but only with a rotor adapter kit (sold separately for $59.99). The hub’s ABS pilot hole design supports 0.75-inch rotor pilot holes for standard calipers.
6. What tools are needed for installation?
A hydraulic press (12-ton minimum), lug nut wrench, torque wrench (range 10–100 ft-lbs), bearing cone drift, and a dial indicator for preload verification. Timbren includes a detailed manual, but Timbren HD3500SL: Pro Installation & Retrofit Tips for Smooth Setup covers tool-specific guidance.
