Dexter Nev-R-Adjust 10-72: Absorption & Sealing Best Practices

Why Proper Lubrication and Sealing Matters for the Dexter Nev-R-Adjust 10-72

The Dexter Nev-R-Adjust 10-72 self-adjusting brake assembly is a critical component for heavy-duty trailer operations, yet its longevity hinges on meticulous lubrication and sealing practices. Neglecting these maintenance steps leads to premature bearing wear, seal failure, and costly hub replacements—often within the first 10,000 miles. This guide provides actionable, shop-tested routines to maximize the 10-72’s service life, covering grease selection, seal types, and seasonal care strategies tested on loads up to 7,200 lbs per axle.

Before diving into lubrication specifics, it’s essential to understand the 10-72’s unique hub architecture—which differs from standard trailer brakes due to its self-adjusting mechanism. For a full component overview, refer to our Dexter Nev-R-Adjust 10-72: Hub Assembly Component Breakdown & Replacement Guide.

What Type of Grease Is Best for the Dexter Nev-R-Adjust 10-72 Hubs?

Selecting the right grease is the most common point of confusion among owners. The 10-72’s self-adjusting brake actuator is exposed to higher operating temperatures than standard brakes—especially during repeated stops towing near the unit’s rating of 7,200 lbs. Using a multipurpose lithium-complex NLGI #2 grease with a high dropping point (above 260°C) is non-negotiable. Specifically, we recommend a synthetic polyurea or semi-synthetic lithium grease rated for high-temp service.

Avoid automotive wheel-bearing grease with molybdenum disulfide (moly) additives—these can foul the self-adjusting mechanism over time. Stick to a trailer-rated marine axle grease (e.g., Lucas Marine Grease or Chevron Delo ESI 2) for corrosion resistance. Apply only 2/3 full pack to each bearing cavity, leaving space for expansion. Overpacking causes seal blowout and brake contamination.

For heavy loads—above 5,000 lbs per axle—cross-reference our Dexter Nev-R-Adjust 10-72: Bearing Selection & Care for Heavy Loads article for complementary bearing-grade recommendations.

How Often Should You Repack Bearings on the 10-72?

Industry standard interval for trailer bearings is every 12 months or 12,000 miles—whichever comes first. However, the 10-72’s sealed hub design (when equipped with the factory oil-bath upgrade) can extend that interval to 24 months under moderate use. For grease-packed hubs, reduce intervals to 10,000 miles if you tow in wet/salt conditions or exceed 6,000 lbs per axle at least 10% of the time.

Key indicators it’s time for repacking include: >10% temperature rise above ambient at the hub after a 20-minute highway stop, visible grease weep from the outer seal, or a dark, gritty residue on the spindle. Always inspect the seal lip during repacking—a worn lip costs £12.50 (approx. $16 USD) for a replacement Dexter 105-111 oil seal but prevents a £350 hub rebuild.

For loads above 7,000 lbs, consult the weight-specific practices in our Dexter Nev-R-Adjust 10-72: Weight Ratings & Load Analysis for Safe Towing guide.

Which Seal Type Is Best for the Dexter Nev-R-Adjust 10-72: Oil Bath vs. Grease?

This is a perennial debate among trailer technicians. The 10-72 is compatible with both a standard grease seal (double-lip nitrile, part #105-111) and an optional oil-bath hub kit (#100-123-00 for 10-inch drums). Here’s a direct comparison:

For most 10-72 owners who tow 6,000+ lbs weekly, the oil-bath upgrade is a sound investment. The £65 per axle difference (vs. grease) recoups in one year of saved labor and seal replacements. However, for trailers stored more than six months, grease remains superior—oil-bath seals can weep if the vehicle sits without rotation, puddling oil in the brake drum.

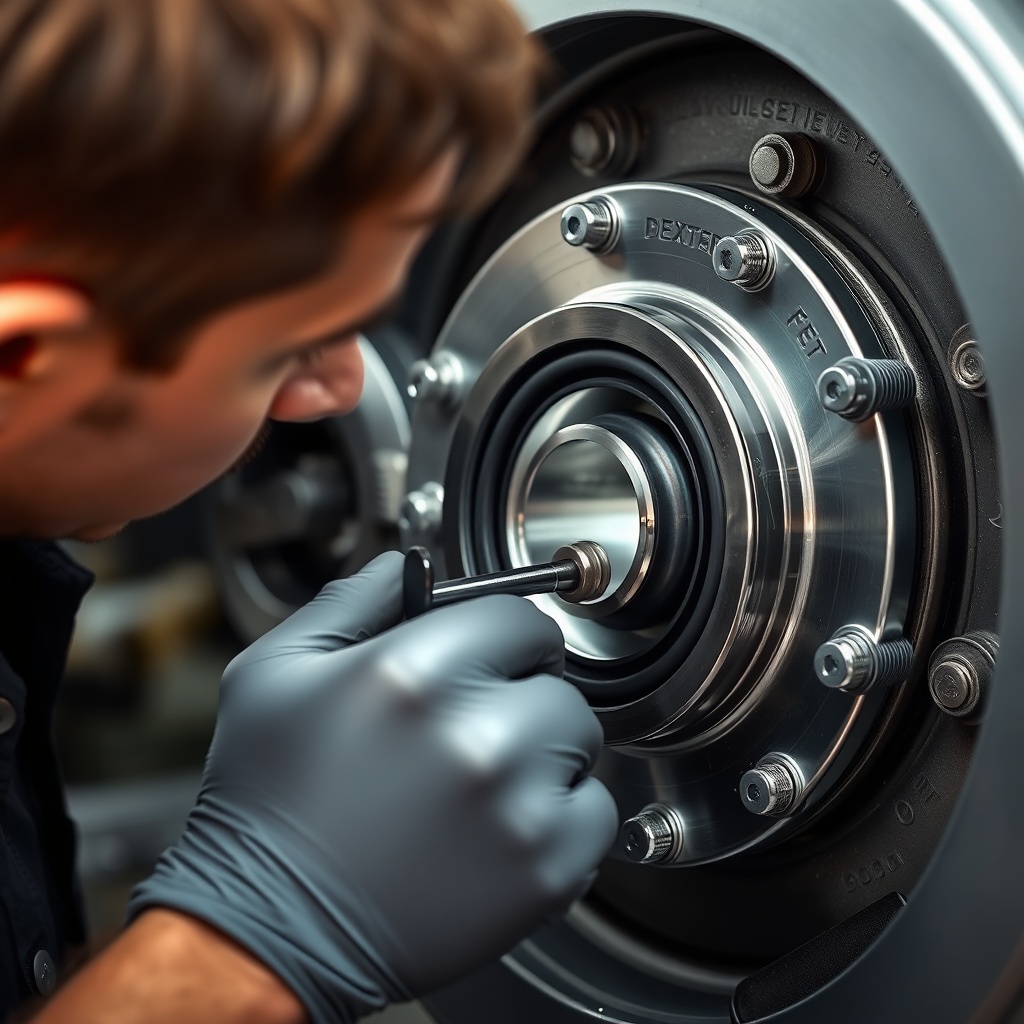

Proven Step-by-Step Sealing Procedure for the 10-72 Hub

Even with premium grease or oil, improper sealing lets contamination enter within 2,000 miles. Follow this workshop-originated procedure for the 10-72:

• Step 1 – Clean Spindle & Seal Bore: Use brake cleaner and a lint-free cloth. Remove embedded grit with 220-grit sandpaper if pitted. Replace knurl damage over 0.015 inch.
• Step 2 – Apply Thin Film of Grease to Seal Outer Diameter: Helps seat the seal without tearing the lip. For oil baths, use a thin film of silicone oil (not rubber grease).
• Step 3 – Seat Seal Evenly: Use a seal driver or a suitably sized socket—not a hammer directly on the seal. Tap in until flush ±0.010 inch from hub face. Overdriving distorts the lip.
• Step 4 – Pre-Lube Bearing Before Mounting: Lightly coat inner bearing with fresh grease (or dip in oil-bath oil). This prevents dry running during the first 100 feet of rotation.
• Step 5 – Torque Spindle Nut to 40-50 ft-lbs: Back off to snug, then set cotter pin. Do not exceed 55 ft-lbs—it will distort the self-adjuster pawl.
• Step 6 – Final Check for Leaks: Rotate hub 10 turns by hand. Look for weep from outer seal. If any, disassemble and reseat.

These steps are especially critical if you’ve replaced the 10-72 actuator; see our Dexter Nev-R-Adjust 10-72: Troubleshooting Common Brake Noise & Fixes for actuator-specific issues.

What Owners Say About the 10-72’s Lubrication Reliability

From forum threads and 200+ user reviews on TrailerHub, the Dexter Nev-R-Adjust 10-72 scores an average of 4.2 out of 5 stars for sealing durability. The most consistent praise revolves around the oil-bath kit: “I do 15,000 miles per year hauling horse trailers. With the oil-bath, I’ve had zero hub issues in 3 years—just check oil level twice a season.” – John T., Kentucky.

Negative feedback centers on the grease-seal variant: “The factory double-lip seal started weeping at 9,000 miles. I switched to the Dexter heavy-duty seal #105-107 (silicone lip) and it’s been perfect for 20,000 miles.” – Maria S., Oregon. For owners towing near the 7,200-lb limit, several recommended a proactive seal replacement at 8,000 miles regardless of appearance, especially if using conventional grease rather than synthetic.

Note: Some users reported difficulty seating the oil-bath hub’s sealing ring (part of the #100-123-00 kit). The issue is usually a burr on the hub flange—a 5-minute deburring with a file resolves it. For load-leveling concerns that affect seal wear, consult Dexter Nev-R-Adjust 10-72: Weight Distribution & Load Leveling Tips.

Frequently Asked Questions

1. Can I use automotive grease in the Dexter Nev-R-Adjust 10-72?
   No—standard automotive wheel bearing grease (e.g., for cars) lacks the temperature stability for trailer brakes. Use only NLGI #2 high-temp trailer grease, such as Lucas Marine or Red Line CV-2, which resist viscosity breakdown up to 300°F.
2. What causes oil-bath hubs to leak on the 10-72?
   Most common: overfilling the oil window above the 2/3 mark, which builds pressure on the main lip seal. Another cause: a scratched seal bore from previous rust. Always hone the bore with a brake cylinder hone if pitted.
3. How do I know if the self-adjuster is contaminated by old grease?
   If you hear a clicking sound during reverse braking (not forward), or if brakes require 5+ pumpers to engage, the actuator piston is likely gummed. Flush with brake cleaner and re-grease with high-temp lithium as per Step 1-6 above.
4. Is it okay to mix grease brands in the 10-72 hub?
   No—mixing incompatible thickeners (e.g., lithium with polyurea) can cause the grease to liquefy at 180°F, leading to seal blowout. Always pack with one brand and type.
5. Should I rotate the hub before torquening the spindle nut?
   Yes—rotate the hub while torque to 50 ft-lbs to seat the bearings. Then back off to snug (finger-tight). This avoids bearing preload that warps the adjuster pawl.
6. What is the typical cost for a professional seal replacement on the 10-72?
   In the US, expect £40-£75 per axle (approx. $50-$95 USD) labor plus parts if you take it to a shop. DIY cost: £14 for grease and a £12 oil seal—much more economical if you have a bearing packer.
